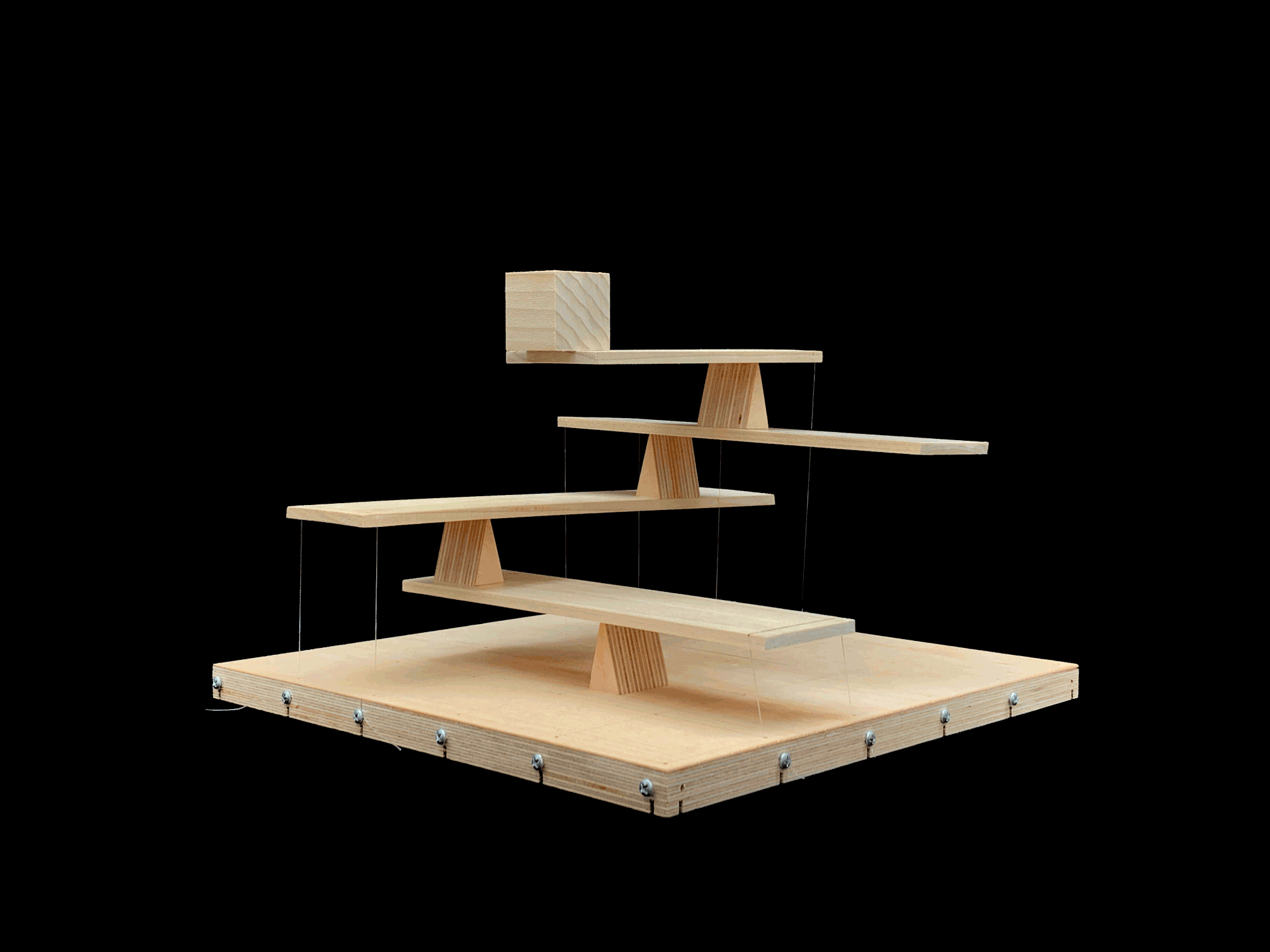

PHYSICAL MODEL

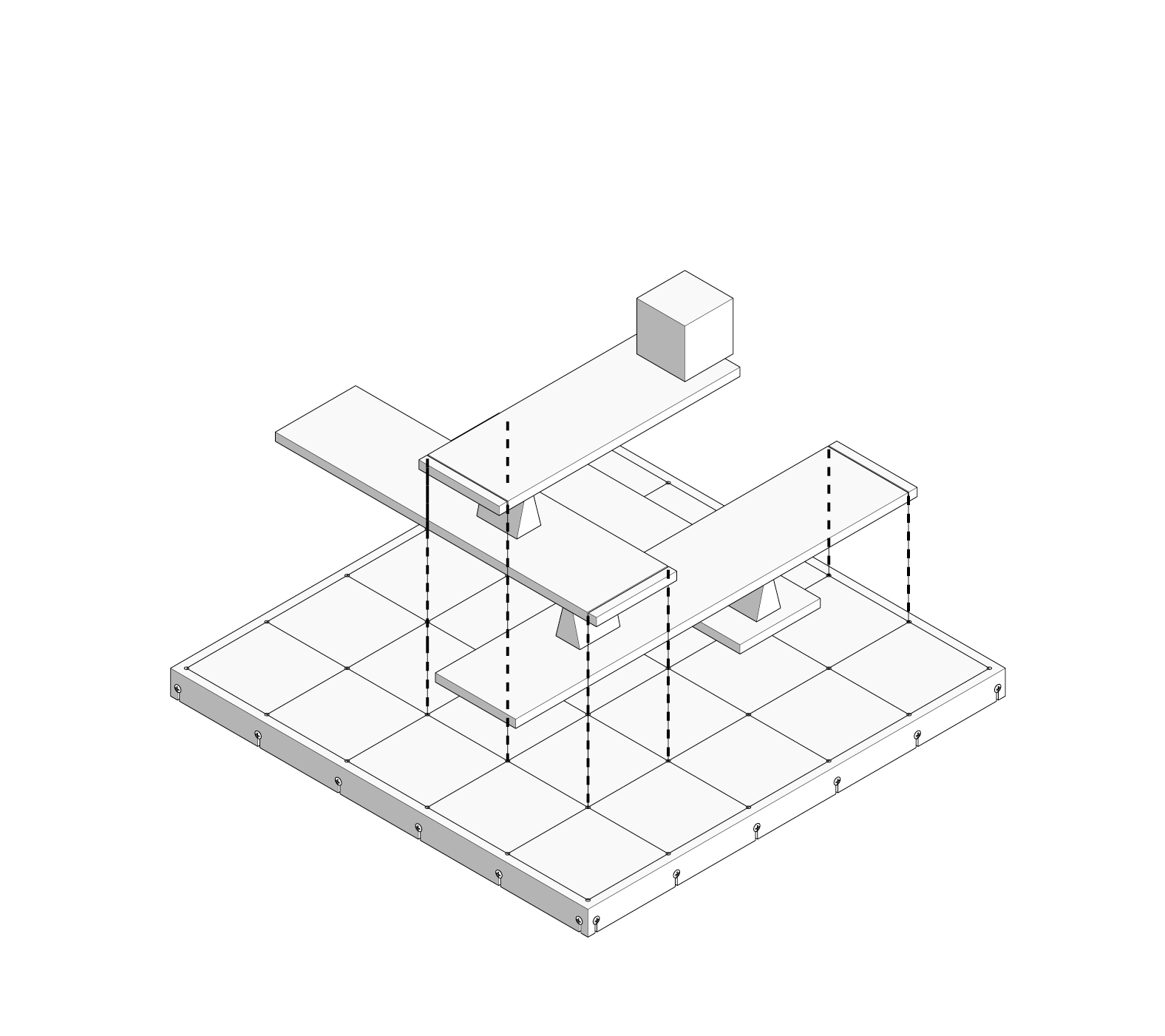

DIGITAL MODEL

PROCESS

EQUILIBRIUM MODEL  / EXPERIMENT EIGHT

This model creates a system of multiple cantilevers using a similar tension and compression set-up (two tension forces and a single compression force for each cantilever). To improve stability, the size of the cantilever is reduced to a thin slab, while the size of the compression elements is increased. By overlapping a series of cantilevered slabs, the visual effect of an interconnected network of floating planes is created.

Adam Berman

Jimmy Bullis

Pouya Najafpour Khadem

Estefania Barajas


Juan José Castellón

Assistant Professor

Dr.sc., ETH Zurich



RA: Estefania Barajas
