RM_X10

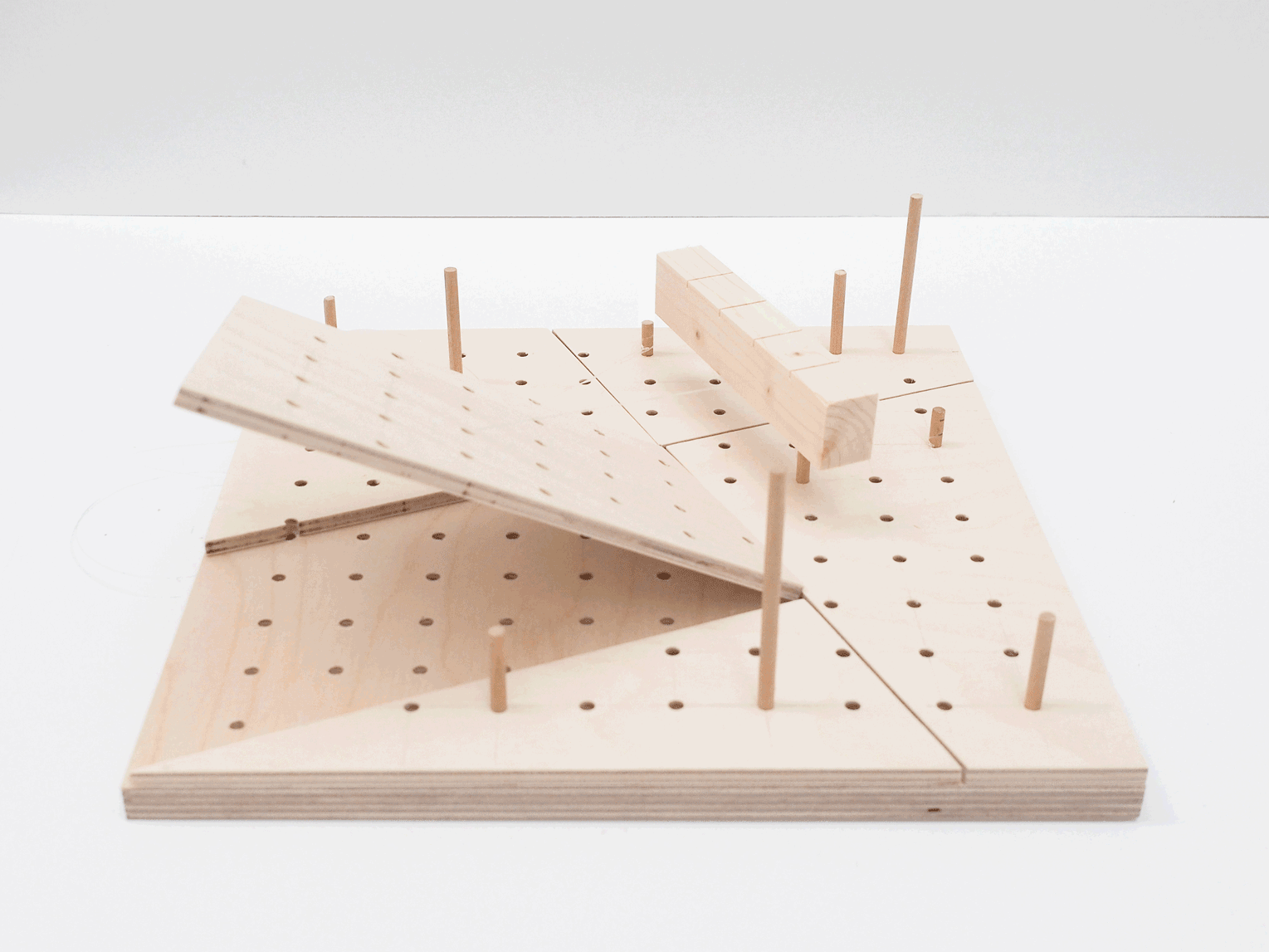

PHYSICAL MODEL

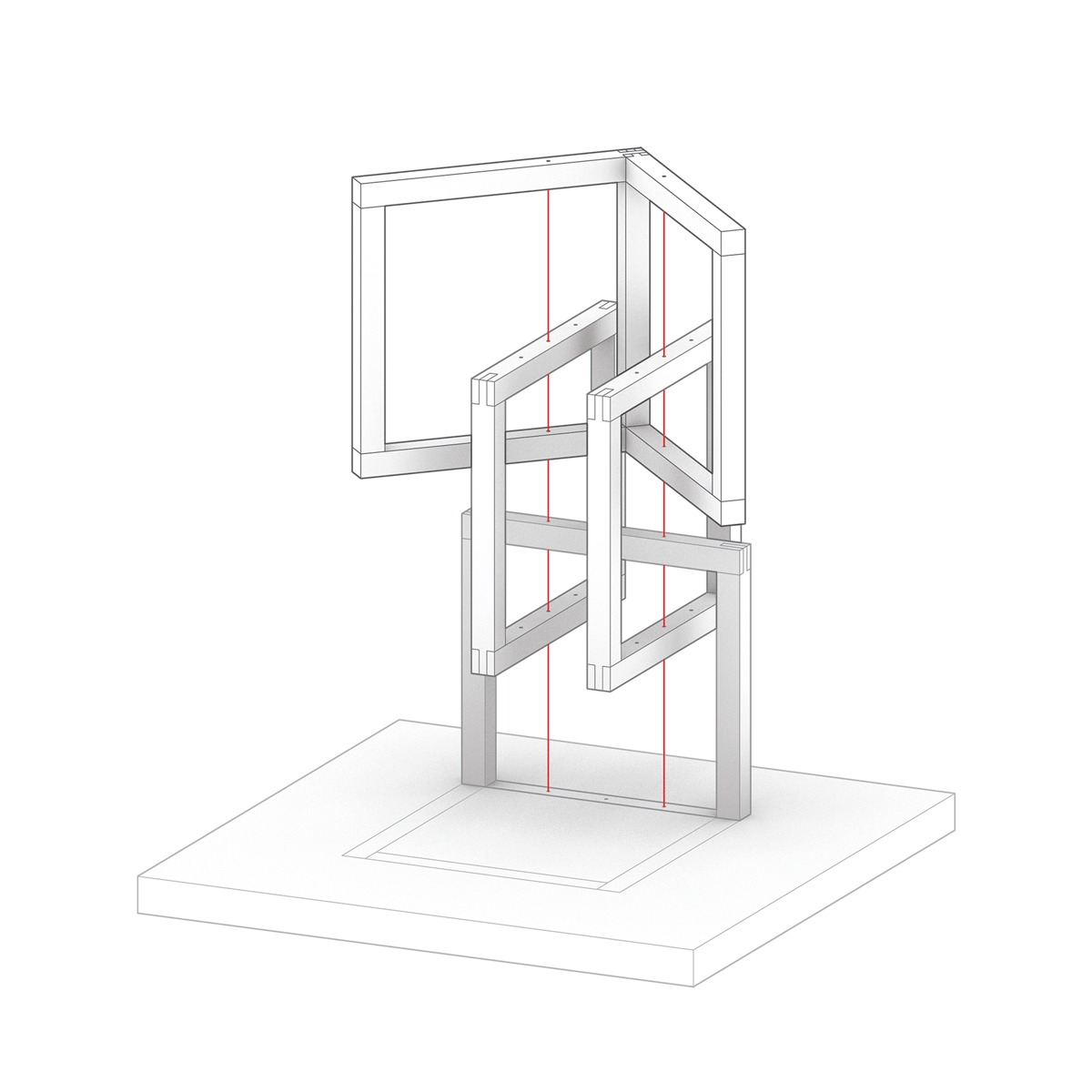

DIGITAL MODEL

PROCESS

EQUILIBRIUM MODEL  / EXPERIMENT TEN

This analysis further developed an analogous system of masses and articulating planes. In this model, the planes also act as compressive elements that support the masses. The string acts as a tensile force to both hold the articulated planes and the masses in equilibrium. While the number of masses and planes involved grew, only one tensile force was used throughout the model, relying on nodes to change its orientation.

Lene Sollie

Jessica LaBarbera

Alec Burran


Juan José Castellón

Assistant Professor

Dr.sc., ETH Zurich



RA: Estefania Barajas
