19EM_X08

EQUILIBRIUM MODEL / EXPERIMENT EIGHT

Adam Berman
Jimmy Bullis
Pouya Najafpour Khadem
Jared Widner

This project aims to create the visual effect of a dramatic cantilever by offsetting a mass using a modular system of wood and concrete blocks. The appearance of a floating object was created by supporting it with a single compression force from a small wooden dowel and securing the cantilever with two tension forces using fishing line.

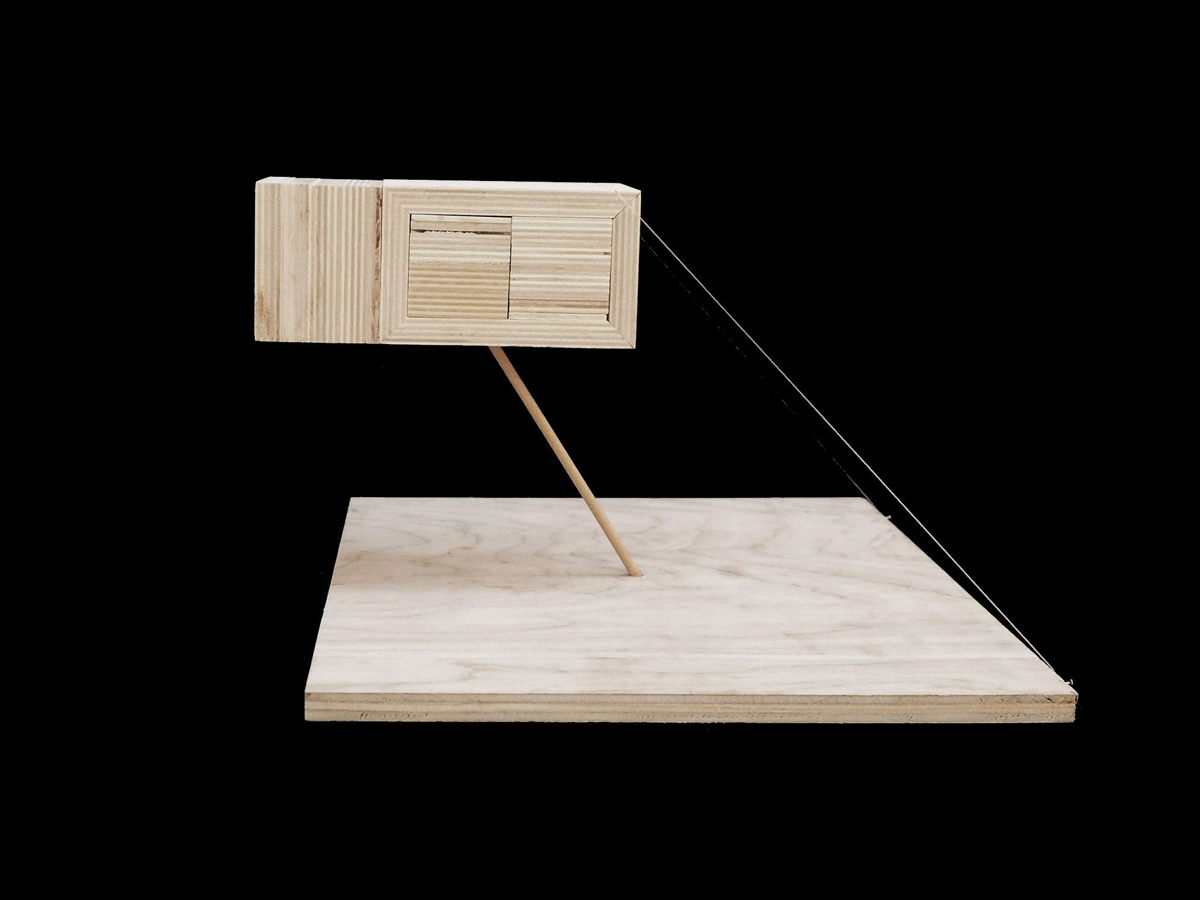

PHYSICAL MODEL

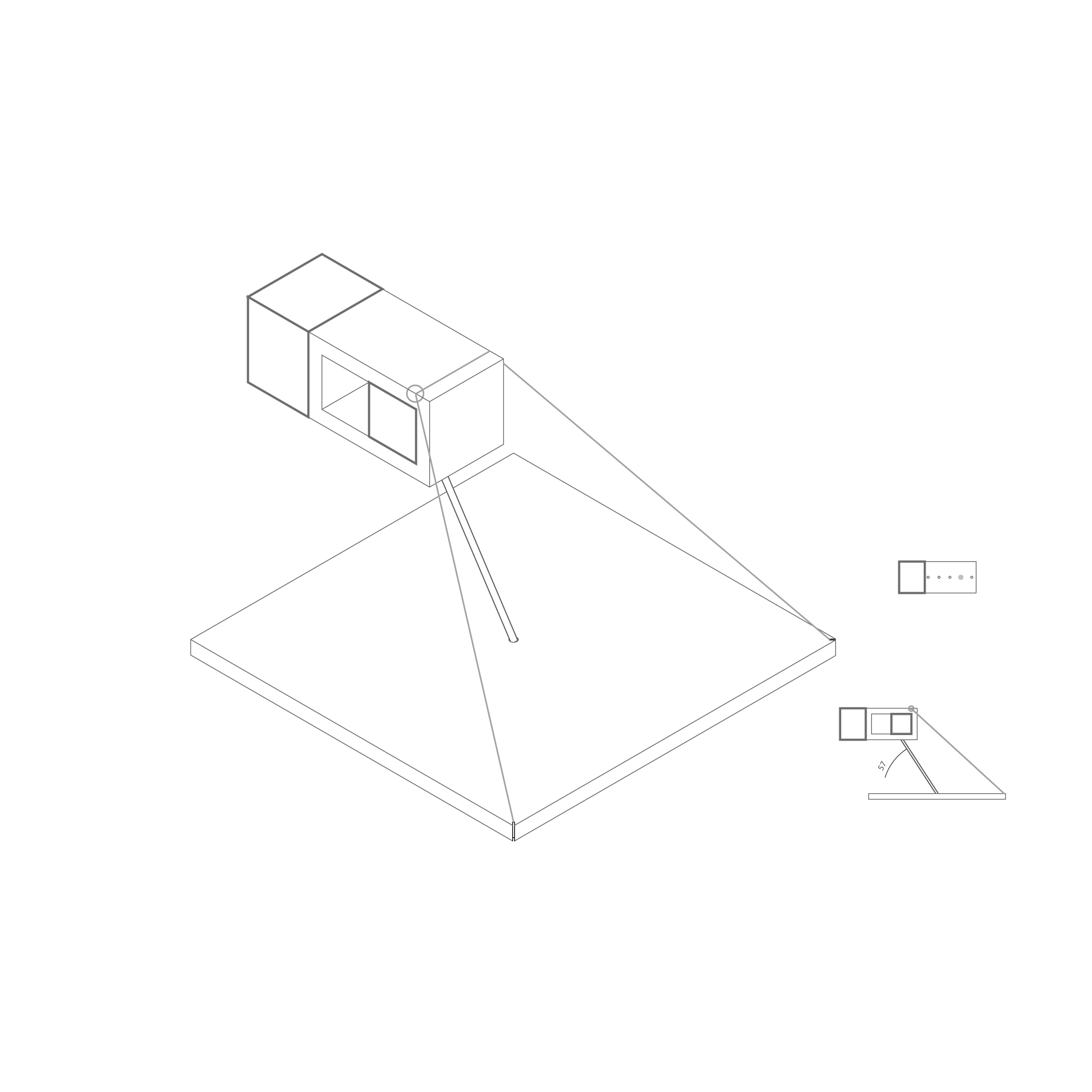

DIGITAL MODEL


PROCESS
