22EM_X09

EQUILIBRIUM MODEL / EXPERIMENT NINE

Cai, Anli
Lezcano Perez, Alejandra
Ma, Wenjie

When we designed this equilibrium model, we explored the relationship between tension, pressure, and friction. Initially, we tried to use a rope to complete the construction of the entire model, and we performed a force analysis of the model in segments, isolated from top to bottom, and we realized the relationship between tension and moment. The direction and magnitude of the moment is critical, and the moment must be able to balance the forces on the object in multiple directions that are applied in other directions.

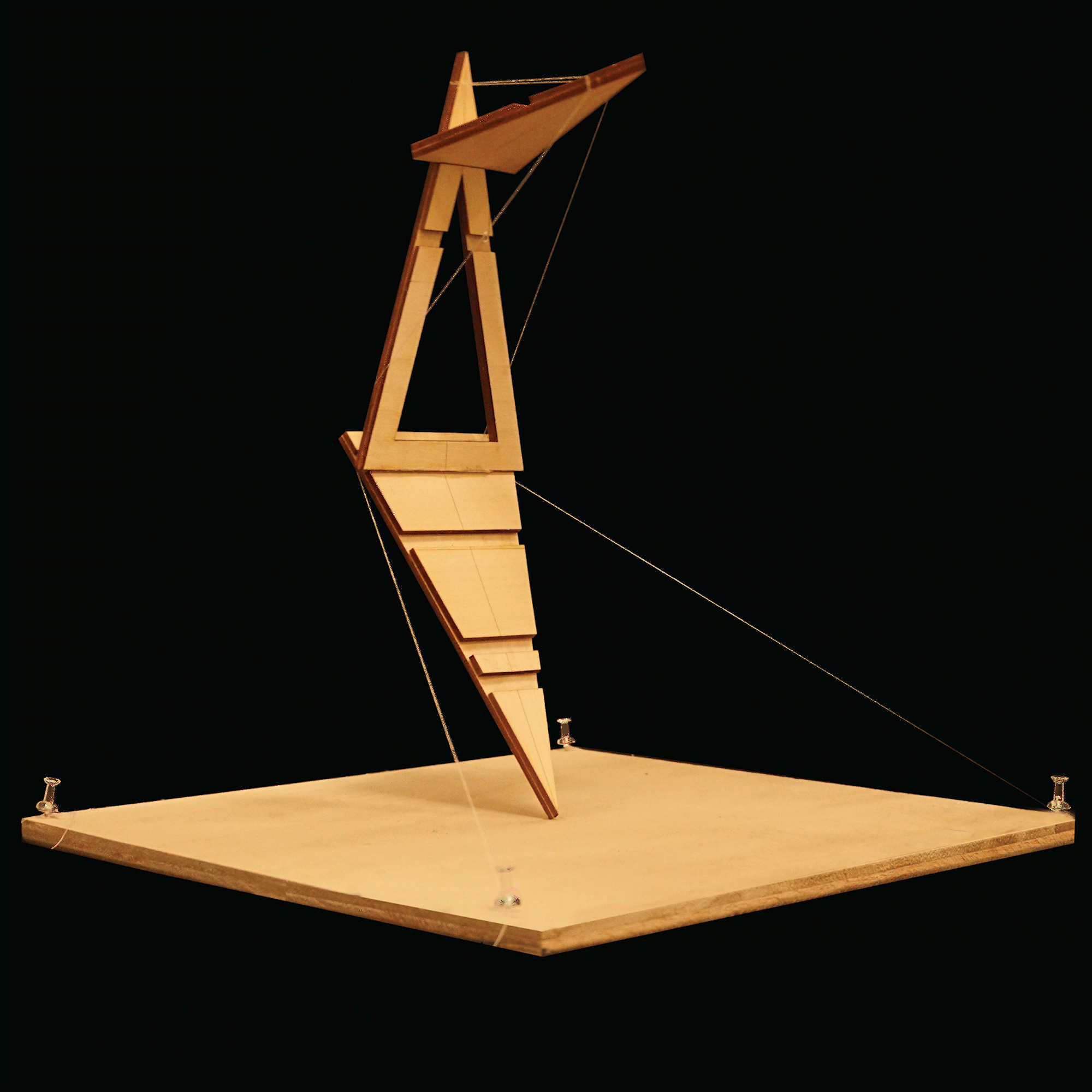

PHYSICAL MODEL


DIGITAL MODEL


PROCESS
